20 years of experience in hydraulic cylinder manufacturers.
MPM cylinders are mainly used in:
Hydraulic Cylinder

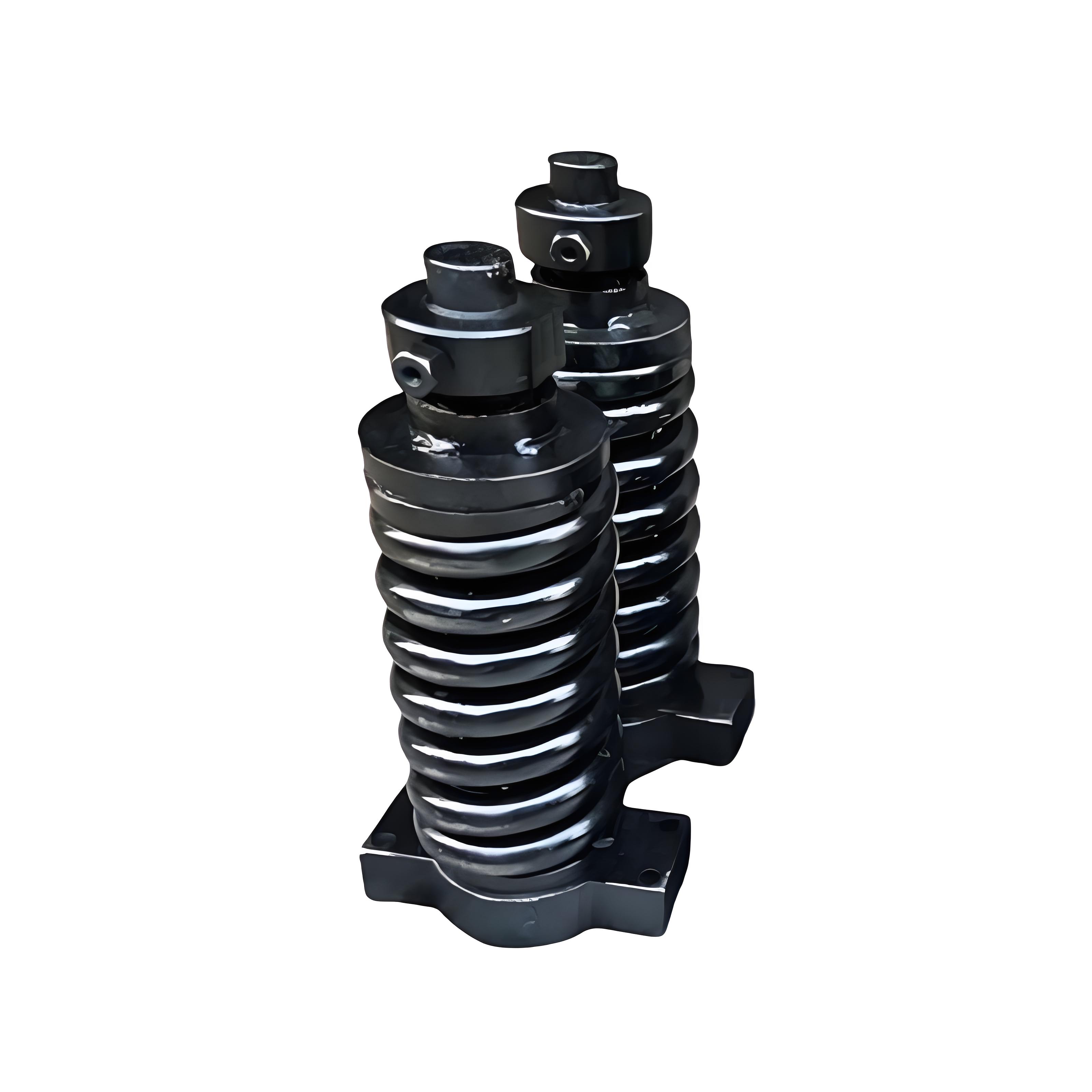

Tightening Cylinder MPM-HCT401 for Excavator and Loader
Description
● Long-term sealing performance: high-quality seals and multi-channel combined seals (O-rings + dust rings) are used to prevent hydraulic oil leakage and contaminant intrusion. Acid and alkali resistant seals can be selected for special working conditions (such as chemical and salt spray environments)
● Widely applicable: Suitable for various models of crawler excavators, such as PC60-7, PC120, PC200-6, PC200-7, PC300-6, PC300-7, etc.
● Working pressure: The rated working pressure is usually 10MPa, and the maximum allowable pressure can reach 16MPa.
● Working temperature: The designed temperature resistance range is -25℃～+120℃.
● Spring parameters: Taking PC120 tightening cylinder as an example, the spring free height is 507mm, the installation height is 390mm, and the load weight is 78500N.m.
● Comprehensive after-sales service: Our customers can enjoy a 2-year warranty on core components, video technical support, online support, spare parts, and on-site maintenance and repair services.
● Customizable and reliable: As a non-standard product, we can meet customers' specific requirements, and our mechanical test reports and video factory inspections ensure the quality and reliability of the products.
Features
Control the action of track tension.
Specification
| Bore diameter | 280mm~380mm |
| Rod diameter | 170mm~300mm |
| Stroke | 700mm |
| Thrust force | Maximum 3967.4KN (Bore diameter: 380mm/ pressure 35MPa)
|
| Material | Carbon steel, Alloy steel, Stainless steel |
| Coating | Sandblasting, primer paint, middle paint, finish paint |
| Customization is the first principle of MPM. | |
Construction machinery
(Hydraulic lifting cylinders and steering cylinders for cranes/ forklifts/ tractors/ loaders/ excavators)
Industrial equipment
(Hydraulic cylinders/ tie rod cylinders/ compact cylinders)
Ships and offshore machinery
(Heavy cylinders, stainless steel hydraulic cylinders)
Customization
If you can provide us with the following technical parameters, we can design and customize Tightening Cylinder according to your needs:
- Bore
- Rod diameter
- Stroke
- Working pressure
- Installation type
- Push or pull back capacity
