20 years of experience in hydraulic cylinder manufacturers.
MPM cylinders are mainly used in:
Hydraulic Cylinder

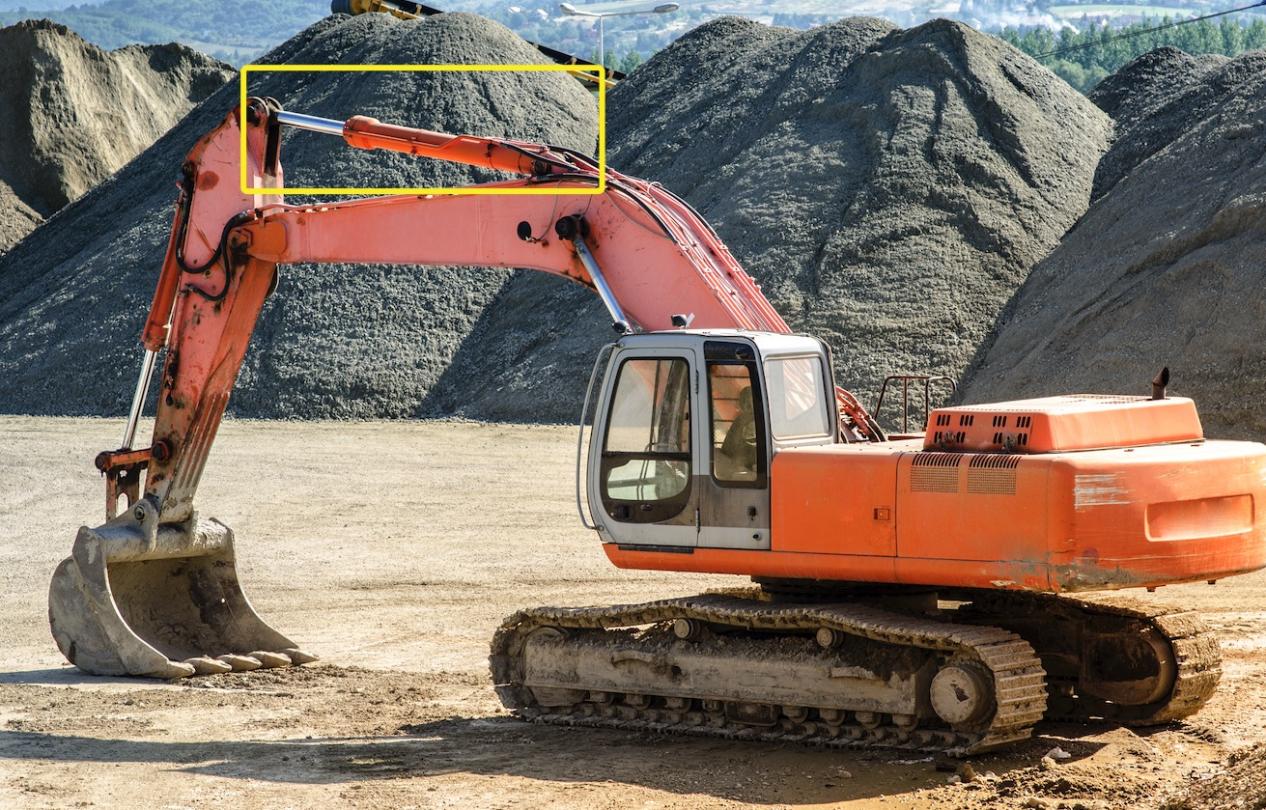

Stick Cylinder MPM-HCS301 for Excavator and Loader
Description
● Working pressure: 20-35MPa (conventional model), peak pressure can reach 40MPa (customizable for special needs)
● Working temperature: -30℃ ~ +80℃, low temperature model is available for -40℃ environment.
● High-strength structure: The cylinder is made of chrome-molybdenum alloy steel, which is cold-drawn and honed to be resistant to high pressure and deformation. The piston rod surface is hard chrome-plated and polished to adapt to harsh environments such as sand, gravel, and slag.
● Applicable tonnage: medium to large hydraulic excavators ranging from 5 tons to 50 tons.
● Application scope: Stick cylinders are widely used in various large-scale construction machinery, such as mining excavators, construction site excavators, etc.
If you are looking for a reliable hydraulic cylinder supplier, or need to upgrade the cylinder of existing equipment, we sincerely invite you to contact us. We have experienced sales and technical team who can provide you with professional consultation and support.
Features
Control the movement of the forearm.
Specification
| Bore diameter | 125mm~360mm |
| Rod diameter | 63mm~260mm |
| Stroke | ≤2600mm |
| Thrust force | Maximum 3560.8KN (Bore diameter: 360mm/ pressure35MPa) |
| Material | Carbon steel, Alloy steel, Stainless steel |
| Coating | Sandblasting, primer paint, middle paint, finish paint |
| Customization is the first principle of MPM. | |
Construction machinery
(Hydraulic lifting cylinders and steering cylinders for cranes/ forklifts/ tractors/ loaders/ excavators)
Industrial equipment
(Hydraulic cylinders/ tie rod cylinders/ compact cylinders)
Ships and offshore machinery
(Heavy cylinders, stainless steel hydraulic cylinders)
Customization
If you can provide us with the following technical parameters, we can design and customize Stick Cylinder according to your needs:
- Bore
- Rod diameter
- Stroke
- Working pressure
- Installation type
- Push or pull back capacity
