Small Excavator Bulldozing Cylinder.jpg

Small Excavator Bulldozing Cylinder

Bulldozing Cylinder is a dozer device for 1-6 ton small excavators. It is mainly used to control the lifting and angle adjustment of the dozer blade. On small excavators, the bulldozing cylinder can effectively assist in completing tasks such as land leveling and site cleaning after excavation, thereby improving the operating efficiency and versatility of the excavator.

    Contact us
    product details

    Description

    Working pressure: The general working pressure range is 10MPa~29.4MPa. The rated working pressure of some small excavator hydraulic systems is 10MPa, and the maximum allowable pressure is 16MPa.
    Working temperature: The design has a wide temperature resistance range and can work normally in an environment of -40℃~+120℃. And we can also provide customized services for cylinders with higher or lower temperatures.
    Energy saving: Reduce energy loss and improve energy utilization efficiency through reasonable design and optimization of hydraulic circuits.
    Comprehensive after-sales service: Our customers can enjoy a 2-year warranty on core components, video technical support, online support, spare parts, and on-site maintenance and repair services.
    Customizable and reliable: As a non-standard product, we can meet customers' specific requirements, and our mechanical test reports and video factory inspections ensure the quality and reliability of the products.

    Features

    Control the action of the bulldozer.

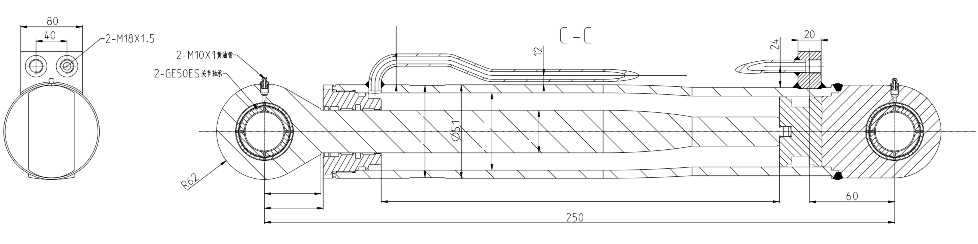

    Specification

    Specification
    Bore diameter 50mm~140mm
    Rod diameter 25mm~80mm
    Stroke ≤250mm
    Thrust force  Maximum 453KN
    (Bore diameter 140mm/pressure29.4MPa)
    Material Carbon steel, Alloy steel, Stainless steel
    Coating Sandblasting, primer paint, middle paint, finish paint
    Customization is the first principle of MPM.

    Service

    20 years of experience in hydraulic cylinder manufacturers

    MPM cylinders are mainly used in:

    1- Construction machinery
    (Hydraulic lifting cylinders and steering cylinders for cranes/ forklifts/ tractors/ loaders/ excavators)

    2- Industrial equipment
    (Hydraulic cylinders/ tie rod cylinders/ compact cylinders)

    3- Ships and offshore machinery
    (Heavy cylinders, stainless steel hydraulic cylinders)

    If you can provide us with the following technical parameters, we can design and customize bulldozing hydraulic cylinders according to your needs:

    1. Bore
    2. Rod diameter
    3. Stroke
    4. Working pressure
    5. Installation type
    6. Push or pull back capacity
