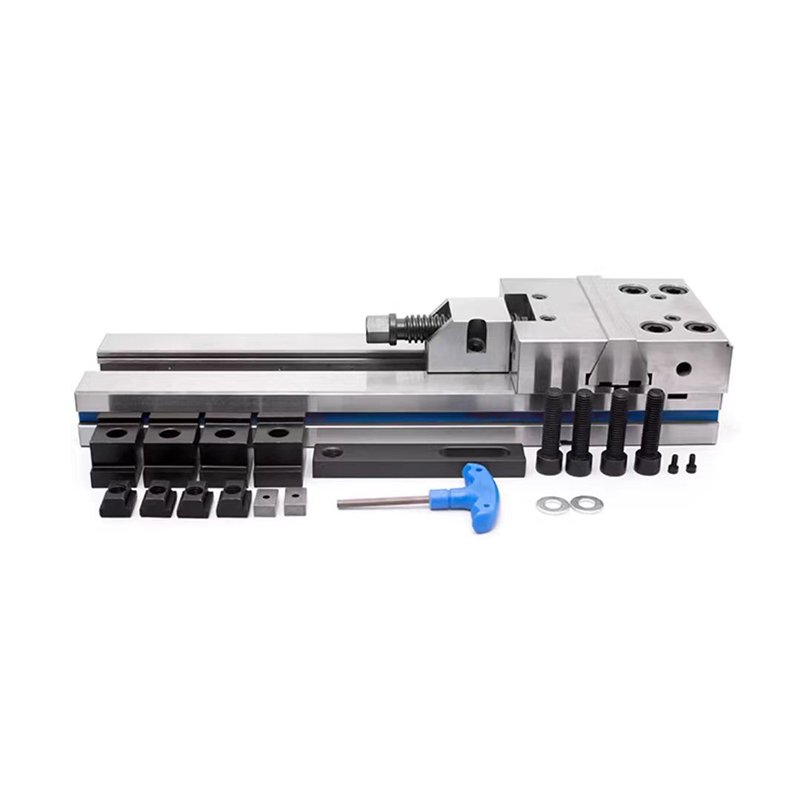

Precision Modular Vice MPM003360

Precision modular Vice, also known as precision modular vise, is a kind of fixture widely used in precision machine tools such as machining centers, which is mainly used for clamping workpieces. It is composed of fixed vise body, moving vise body, lead screw, nuts and other parts, with high positioning accuracy and repeated positioning accuracy.

    Description

    ● Made of high-quality alloy steel with carburizing treatment.
    ● Surface working hardness HRC58-62.
    ● Parallelism of 0.005mm/100mm, perpendicularity of 0.005mm.
    ● With a detachable base.
    ● The fixed jaw and movable jaw provide quick clamping and convenient operation.

    Features

    The jaws are precision machinined, the indices of flatness, parallelism, and verticality achieve high levels, thereby guaranteeing the positional accuracy of the workpiece once clamped.

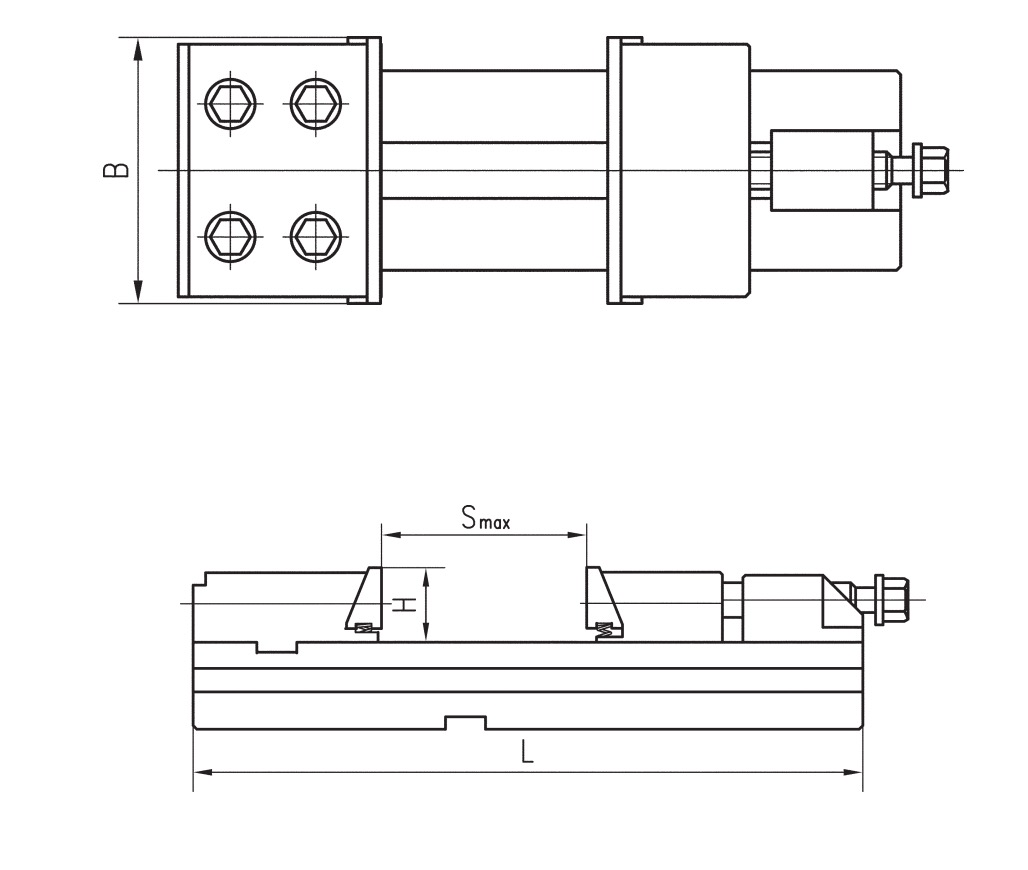

    Specification

    MPM-Precision-Modular-Vice-MPM003360-1

    Item No

    B mm

    H mm

    Smax mm

    L mm

    Clamping force

    GT100-I

    100

    30

    100

    270

    3000

    GT125-I

    125

    40

    150

    345

    3000

    GT150A-I

    150

    50

    200

    420

    5000

    GT150B-I

    150

    50

    300

    520

    5000

    GT150C-I

    150

    50

    400

    620

    5000

    GT175A-I

    175

    60

    200

    455

    6000

    GT175B-I

    175

    60

    300

    555

    6000

    GT175C-I

    175

    60

    400

    655

    6000

    GT175D-I

    175

    60

    500

    755

    6000

    GT175E-I

    175

    60

    600

    855

    6000

    GT200A-I

    200

    65

    200

    495

    10000

    GT200B-I

    200

    65

    300

    595

    10000

    GT200C-I

    200

    65

    400

    695

    10000

    GT200D-I

    200

    65

    500

    795

    10000

    GT200E-I

    200

    65

    600

    895

    10000

    GT300A-I

    300

    80

    200

    535

    12000

    GT300B-I

    300

    80

    300

    635

    12000

    GT300C-I

    300

    80

    400

    735

    12000

    GT300D-I

    300

    80

    500

    835

    12000

    GT300E-I

    300

    80

    600

    935

    12000

    GT300F-I

    300

    80

    700

    1035

    12000

    GT300G-I

    300

    80

    800

    1135

    12000

    Application

    1. Mechanical processing industry
    The vise is widely used in various CNC machine tools, machining centers, etc. In processes such as milling, drilling, tapping, and turning, it is used to fix precision parts.

    2. Automobile manufacture industry
    During the processing of engine components and the assembly of parts, larger metal parts can be fixed to ensure the accuracy of processing and assembly.

    3. Aerospace industry
    It is used for processing aircraft structural components, aero engine parts, etc., to ensure the high-precision positioning and clamping of high-demand parts.

    4. Mould making industry
    In the processing of mold holes and cavities, fix the mold material to ensure the processing accuracy of the hole position, size and cavity.

    5. Electronic and electrical industry
    In circuit board processing and electronic component assembly, it is used to fix circuit boards and tiny electronic components, ensuring the accuracy of processing and assembly.
