20 years of experience in hydraulic cylinder manufacturers.
MPM cylinders are mainly used in:
Truck Crane Cylinder
Outrigger Hydraulic Cylinder MPM-OHC12 for Crane
Description
MPM brand crane hydraulic outrigger cylinders can withstand temperatures from -40°C to +300°C, ensuring reliable performance in a variety of environments.
● High-quality materials and coatings: The cylinders are made of high-strength carbon steel, alloy steel or stainless steel, and feature durable sandblasting, primer, midcoat and topcoat coatings for optimal protection.
● Advanced hydraulic system: With a hydraulic power range of 10-70MPa, this outrigger cylinder is equipped with a solid piston rod made of tempered, nickel-plated, chrome-plated or ceramic materials, ensuring smooth and efficient operation.
● Comprehensive after-sales service: Our customers can enjoy a 2-year warranty on core components, video technical support, online support, spare parts, and on-site maintenance and repair services.
● Customizable and reliable: As a non-standard product, we can meet customers' specific requirements, and our mechanical test reports and video factory inspections ensure the quality and reliability of the products.
Features

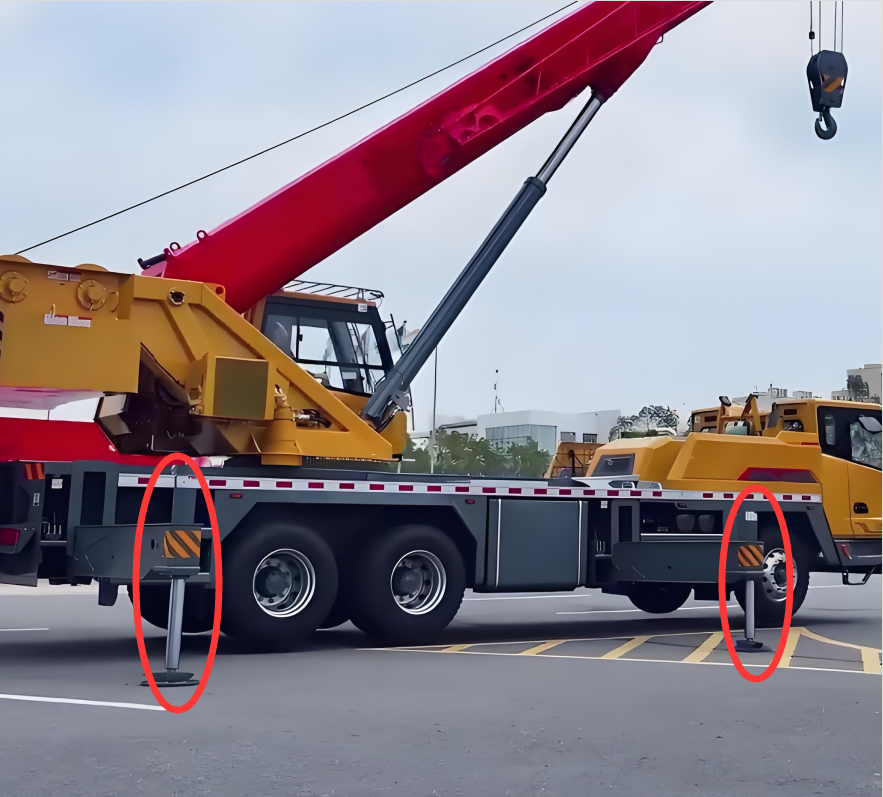

Support the weight of the entire equipment when the crane is lifting.
Specification
| Bore diameter | 70mm～360mm |
| Rod diameter | 45mm～320mm |
| Stroke | ≤800mm |
| Pressure | Maximum 42MPa |
| Material | Carbon steel, Alloy steel, Stainless steel |
| Coating | Sandblasting, primer paint, middle paint, finish paint |
| Customization is the first principle of MPM. | |
Construction machinery
(Hydraulic lifting cylinders and steering cylinders for cranes/ forklifts/ tractors/ loaders/ excavators)
Industrial equipment
(Hydraulic cylinders/ tie rod cylinders/ compact cylinders)
Ships and offshore machinery
(Heavy cylinders, stainless steel hydraulic cylinders)
Customization
If you can provide us with the following technical parameters, we can design and customize Outrigger Hydraulic Cylinder MPM-OHC12 according to your needs:
- Bore
- Rod diameter
- Stroke
- Working pressure
- Installation type
- Push or pull back capacity
