20 years of experience in hydraulic cylinder manufacturers.
MPM cylinders are mainly used in:
Truck Crane Cylinder

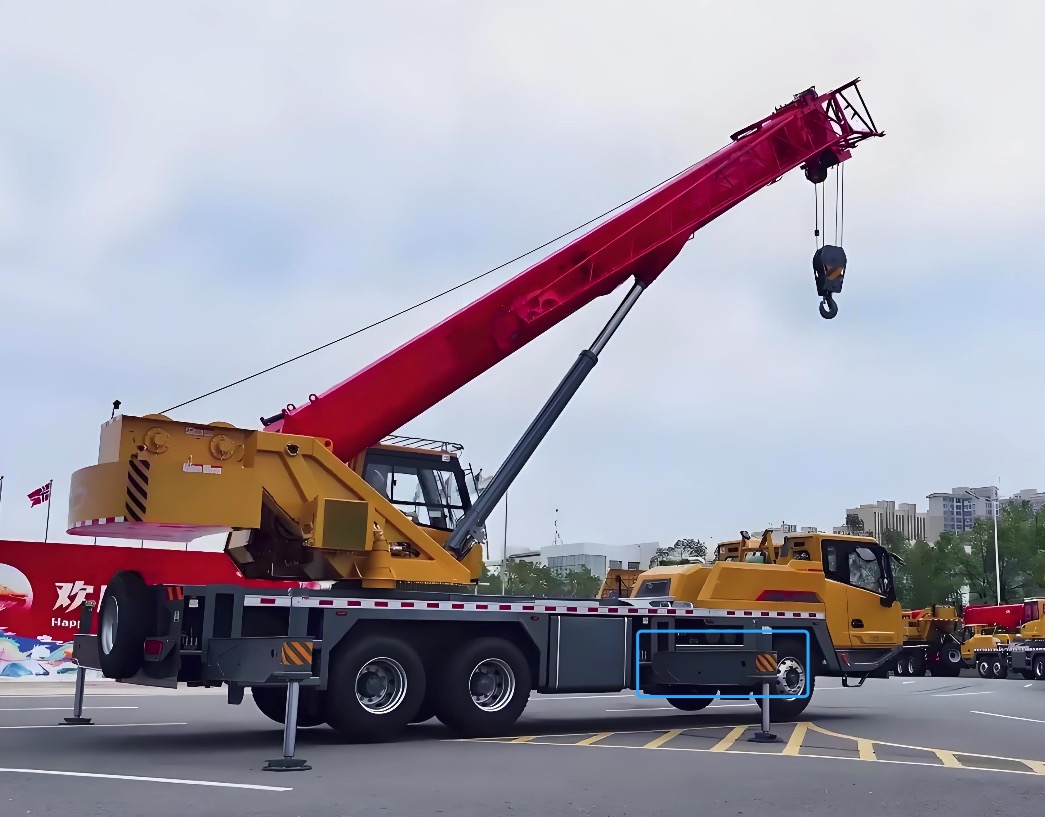

Outrigger Expansion Cylinder
Description
Working temperature: Temperature range is -40℃ ~ +100℃, low temperature type supports -50℃, special sealing is required.
Overload protection: Built-in safety valve, automatically releases pressure when pressure exceeds limit to protect the outrigger structure.
Quick response and energy saving: Optimized oil circuit design, deployment and retraction response time is less than or equal to 1 second, improving work efficiency.
Typical application scenarios: construction sites, wind power installation, bridge construction, emergency rescue.
Comprehensive after-sales service: Our customers can enjoy a 2-year warranty on core components, video technical support, online support, spare parts, and on-site maintenance and repair services.
Customizable and reliable:
As a non-standard product, we can meet customers' specific requirements, and our mechanical test reports and video factory inspections ensure the quality and reliability of the products.
Features
Extend the outrigger cylinder horizontally
Specification
| Bore diameter | 50mm~75mm |
| Rod diameter | 25mm~55mm |
| Stroke | ≤2500mm |
| Pressure | Maximum 35MPa |
| Material | Carbon steel, Alloy steel, Stainless steel |
| Coating | Sandblasting, primer paint, middle paint, finish paint |
| Customization is the first principle of MPM. | |
Construction machinery
(Hydraulic lifting cylinders and steering cylinders for cranes/ forklifts/ tractors/ loaders/ excavators)
Industrial equipment
(Hydraulic cylinders/ tie rod cylinders/ compact cylinders)
Ships and offshore machinery
(Heavy cylinders, stainless steel hydraulic cylinders)
Customization
If you can provide us with the following technical parameters, we can design and customize Outrigger Hydraulic Cylinder MPM-OHC12 according to your needs:
- Bore
- Rod diameter
- Stroke
- Working pressure
- Installation type
- Push or pull back capacity
