Introduction

In daily work, we often encounter customer requests for lightweight Hydraulic Cylinder Designs while maintaining the same operating pressure, thereby reducing the weight of the main unit and achieving energy conservation and emission reductions. However, this is typically a systematic, multidisciplinary optimization process involving multiple aspects, including materials science, structural mechanics, and manufacturing processes.

I. Material Innovation

This is the most significant approach to weight reduction. The core concept is to replace traditional materials with materials with higher strength-to-weight ratios (specific strength).

1. Replacing Ordinary Steel with High-Strength Steel:

• Traditional Materials: Typically, materials such as 45# steel and 27SiMn are used.
• Lightweight Materials: Materials with higher yield strengths are used, such as Q690D, 30CrMnSiA, 34CrMo4, and even high-strength alloy steels like titanium alloy. While maintaining the same pressure, the cylinder barrel and piston rod walls can be made thinner, directly reducing weight.
• Advantages: Mature technology and high reliability.
• Challenges: Material costs and processing difficulties (such as weldability) may increase

2. Aluminum Alloy:

• Suitable for low- to medium-pressure applications (typically ≤21 MPa) or applications where weight is extremely important, such as aerospace and portable equipment.
• Advantages: Extremely light (density approximately one-third that of steel).
• Challenges: Lower strength, and inferior wear and impact resistance compared to steel. This often requires thicker walls or specialized structural designs (such as bushings), which may partially offset the weight saving. Cost is also high.

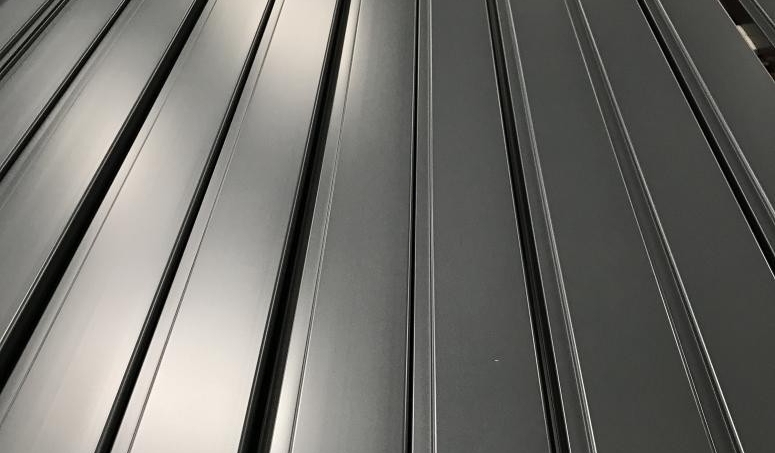

alt. High-quality aluminum alloy material

3. Composite Materials:

• Carbon Fiber/Glass Fiber Reinforced Composites: This is the most cutting-edge lightweighting technology.
• Applications:
• All-composite Cylinder: Carbon fiber is wrapped around a thin-walled metal or plastic liner. Leveraging the composite material's high specific strength and design flexibility, it excels in withstanding circumferential stresses. This can be used to manufacture ultra-light cylinders.
• Hybrid Structure: The piston rod features a high-strength steel core coated with a carbon fiber composite material, ensuring rod stability while significantly reducing weight. Advantages: Significant weight reduction (up to 50% or more) and excellent corrosion resistance.

Challenges: Extremely high costs, complex design, manufacturing, and testing processes, and technical challenges in connection with metal components and reliable sealing.

II. Structural Optimization

Reducing unnecessary material by optimizing geometry within a given material.

1. Topology Optimization:

Method: Utilizing finite element analysis software, within a given design space, an algorithm is used to find the optimal material distribution path based on the load conditions (such as pressure and load). Simply put, this approach eliminates unloaded material while retaining critical load paths.

Applications: Primarily used for optimizing non-pressure-bearing or complex-shaped structural components such as Cylinder Heads, lugs, and mounting brackets. Hollowed-out or ribbed lightweight structures can be designed, rather than simple solid blocks.

2. Dimensional Optimization:

Method: While maintaining the basic shape of the structure, precise calculation and optimization of component wall thickness, hole diameter, thread size, and other factors are performed. Through precise mechanical analysis (such as strength calculations and buckling analysis), wall thickness is minimized while meeting safety factors.

• Key Points:
• Cylinder Wall Thickness: Stress analysis of thick-walled cylinders is required to ensure that both circumferential and radial stresses remain within allowable ranges when subjected to internal pressure.
• Piston Rod Diameter: Not only must strength requirements be met, but compressive rod stability (Eulerian stability) must also be verified to prevent buckling under pressure. This is a crucial step in lightweight design.

3. Shape Optimization:

• Optimizing the geometry of stress concentration areas, such as using larger transition radiuses, ensures more uniform stress distribution, allowing for the use of thinner material in key load-bearing areas.

III. Process and Joining Technologies

Advanced manufacturing processes can achieve more optimized structures and reduce added weight.

1. Welding and Joining Technologies:

• High-energy beam welding technologies such as laser welding and electron beam welding can produce narrow and deep welds with a small heat-affected zone and minimal weld distortion. This means the size of weld grooves can be reduced, and even thinner sheet metal can be used, thereby reducing structural weight.

2. Forging and Precision Casting:

For parts like end caps, precision forging or investment casting can produce blanks closer to their final shape, reduce machining allowances, improve material utilization, and enhance overall integrity, facilitating the design of lighter integrated structures.

3. Hydroforming:

This can be used to manufacture cylinders with special cross-sections, integrating structure and function. In certain applications, it may also save material compared to traditional cylinders.

IV. System-Level Considerations

Sometimes, lightweighting requires considering the entire hydraulic system.

Optimizing Operating Pressure: The requirement is to maintain constant pressure, but if conditions permit, increasing system operating pressure is the ultimate means of reducing cylinder weight and size (because cylinder thrust F = P × A. To achieve the same thrust F, a higher pressure P requires a smaller area A, which naturally reduces cylinder size and weight). Of course, this requires corresponding upgrades to the entire system (pump, valves, and piping). Use non-metallic seals: Lightweight, efficient seal combinations can reduce friction, allowing for smaller piston rods, indirectly contributing to lightweighting.

V. Summary of the Lightweight Design Process

1. Define Goals and Constraints: Determine a weight reduction target (e.g., a 15% reduction) and clearly define constraints such as pressure, load, stroke, service life, and cost budget.
2. Preliminary Material Selection: Evaluate the feasibility of high-strength steel, aluminum alloy, or composite materials based on pressure rating and cost.
3. Conceptual Design and Analysis: Use CAD software to create a model and employ CAE software (e.g., ANSYS, Abaqus) to perform static, buckling, and fatigue analyses.
4. Structural Optimization: Based on the analysis results, perform topology and dimensional optimization on key components, and iterate the design.
5. Detailed Design: Optimize details such as seal grooves, threads, and transition fillets, and perform a final strength check.
6. Process Selection and Prototyping: Determine the most suitable manufacturing process and produce a prototype. 7. Testing and Verification: Prototypes undergo stress testing, fatigue testing, and performance testing to verify the design's reliability and lightweighting effectiveness.

Summary

Lightweighting a hydraulic cylinder is always a trade-off between weight, strength, stiffness, stability, cost, and reliability. While pursuing extreme lightweighting, it's crucial to ensure the cylinder's safety and functionality throughout its lifecycle. A step-by-step approach is recommended, starting with the most mature and lowest-risk high-strength steel and structural optimization.
