How to Determine the Main Dimensions of Hydraulic Cylinders?
Hydraulic Cylinders are essential components in hydraulic systems, converting hydraulic energy into mechanical motion for a wide range of applications. Their main dimensions play a crucial role in determining the performance and functionality of the cylinder. This text focuses on explaining how to accurately determine these main dimensions, including cylinder bore diameter, piston diameter, cylinder length, and cylinder wall thickness. By understanding these determination methods, engineers and technicians can design and select hydraulic cylinders that meet the specific requirements of different industrial and mechanical applications, ensuring efficient and reliable operation.

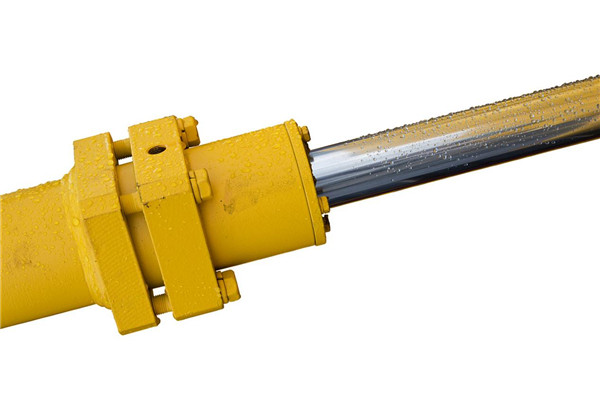

1. Main dimensions of cylinders
The main dimensions of cylinders include: cylinder bore diameter, piston diameter, cylinder length, and cylinder wall thickness.
2. Determination of main dimensions

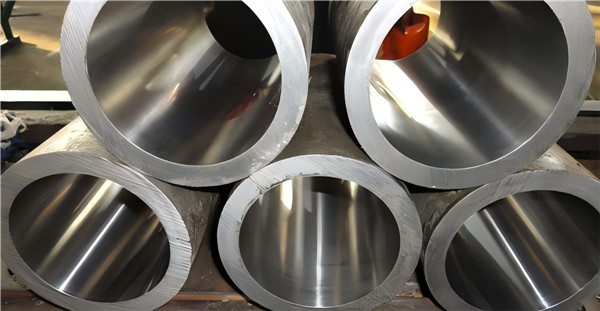

(1) Determination of cylinder body diameter
According to the formula: F=P×A, the effective area A of the piston can be obtained from the thrust F required by the piston and the working pressure P. The cylinder diameter D can be further calculated according to the different structural forms of the cylinder.
(2) Selection of piston rod size
The diameter d of the piston rod is determined according to the force conditions during operation.
(3) Determination of cylinder length
Cylinder length = piston stroke + piston length + piston guide length + piston rod seal and guide length + other lengths.
Piston length = (0.6-1)D;
Piston rod guide length = (0.6-1.5)d.
Other lengths refer to some special required lengths.
For example: the length of the buffer device at both ends, etc.
Some single-piston Rod Cylinders sometimes have minimum guidance requirements, such as: H ≥ L/20 + D/2.
Summary
The main dimensions of hydraulic cylinders - cylinder bore diameter, piston diameter, cylinder length, and cylinder wall thickness - are vital for their performance. The cylinder diameter is calculated from the required piston thrust and working pressure using the formula F=P×A. The piston rod size is determined based on operating force conditions, often with reference to specific tables. Cylinder length is the sum of piston stroke, piston length (ranging from 0.6−1 times the cylinder diameter D), piston rod guide length (0.6−1.5 times the piston rod diameter d), piston rod seal and guide length, and other special - requirement lengths such as buffer device lengths. Some single - piston rod cylinders also have minimum guidance requirements. These methods help in precisely sizing hydraulic cylinders for optimal operation in various applications.
