Introduction

Cnc Tool Holders serve as the core connection between CNC machine tools and cutting tools. Their performance and proper operation directly impact machining accuracy, tool life, and production safety. As CNC machining technology advances toward high speed and high precision, Tool holders selection, installation, and maintenance have become crucial elements of modern manufacturing processes. This guide systematically explains the standard operation procedures for Tool holders, from installation and matching to maintenance. It aims to help operators avoid common risks, maximize Tool holders performance, and ensure stable and efficient machining.

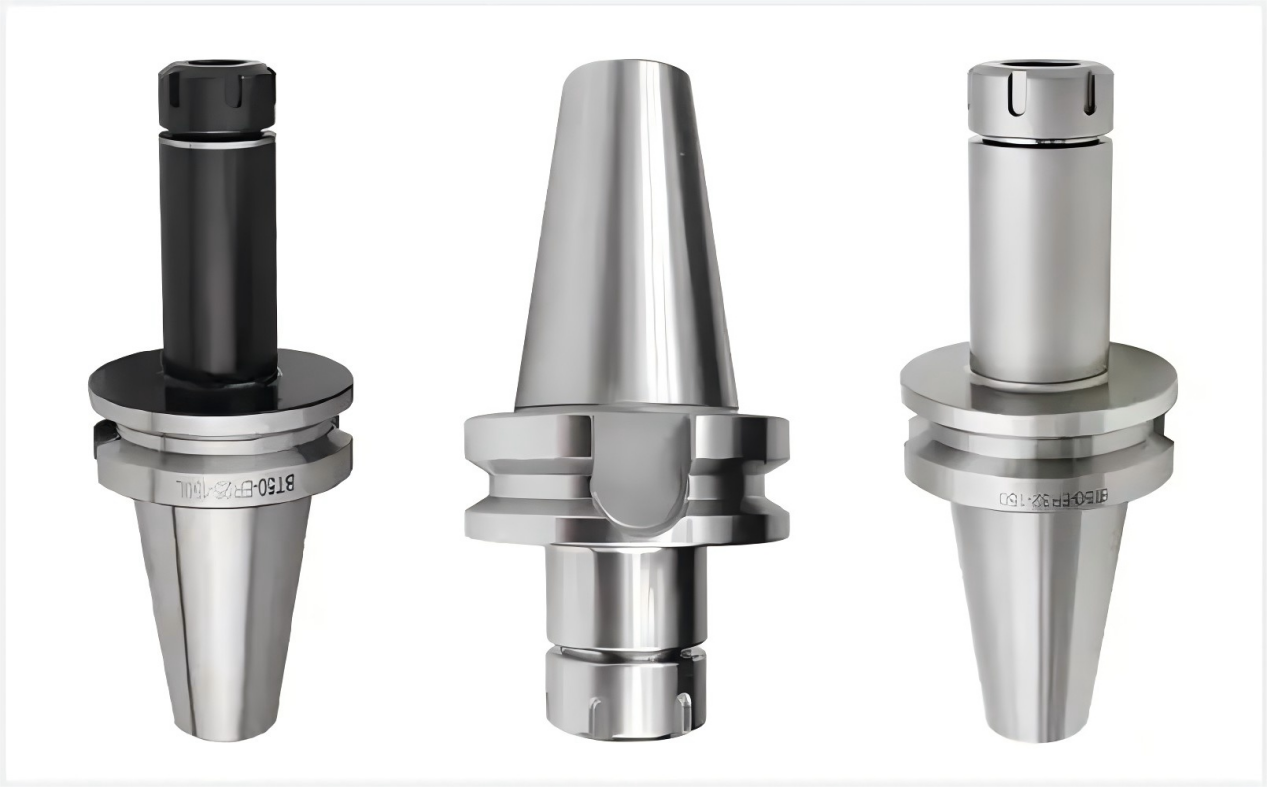

alt. CNC Machine Tool Holder

Standard Installation and Removal Procedures

1. Cleaning

• Before installation, thoroughly clean the Tool holder's taper and end faces, as well as the spindle taper and flange surfaces, to remove oil, iron filings, dust, and other impurities. Impurities can cause poor fit between the Tool holdersand the spindle, leading to vibration, reduced machining accuracy, and even damage to the spindle.
• Wipe with anhydrous ethanol or a specialized cleaning agent, then blow dry with compressed air to ensure no residue remains on the contact surfaces.

2. Correct Installation Procedures

• Manually and gently insert the Tool holdersinto the spindle taper, avoiding collisions (especially with brittle materials such as ceramic Tool holders). Ensure that the Tool holderstaper fits naturally into the spindle taper.
• Tighten the pull pin (or lock nut) according to the torque specified in the machine tool manual. Excessive torque may cause the Tool holdersto deform, while insufficient torque may cause the Tool holdersto loosen or fall out during high-speed rotation.
• After installation, check that the Tool holdersis secure. This can be done by manually shaking it or by rotating the spindle at low speed (without load).

3. Disassembly Precautions

• Before disassembly, ensure that the spindle has completely stopped and the tool is clear of the workpiece.
• Use a dedicated disassembly tool (such as a Tool holdersremover) and avoid striking the Tool holdersor spindle with hard objects such as a hammer to prevent deformation and cracking.

Compatibility and Parameter Matching

1. Tool holders and Machine Spindle Matching

• Select a Tool holdersmodel that matches the machine spindle specifications (such as BT30, HSK63A, CAT50, etc.). Parameters such as taper and flange diameter must match exactly; otherwise, the connection will be unstable.
• For high-speed spindles (speeds > 10,000 rpm), select a Tool holderswith a satisfactory dynamic balancing grade (such as G2.5) to avoid severe vibration caused by imbalance during high-speed rotation.

2. Tool holders and Tool Matching

• The clamping components of the Tool holders(such as the collet, side-lock Tool holders, and heat shrink hole) must match the tool diameter. For example, the clamping range of a collet is typically ±0.5mm of the diameter. Exceeding this range can cause tool slippage.
• The tool extension should be as short as possible (while still meeting the machining requirements). Excessive extension reduces rigidity, causing vibration and tool deflection, impacting machining accuracy and surface quality.

Maintenance and Protection During Use

1. Avoid Overload and Impact

• During machining, set appropriate cutting parameters (cutting speed, feed rate, and cutting depth) based on the load capacity of the tool and Tool holdersto prevent deformation, breakage, or chipping of the Tool holdersdue to overload.
• If any unusual noise, vibration, or sparks occur during cutting, immediately stop the machine and inspect. Eliminate any problems with a loose Tool holders, tool wear, or workpiece interference before continuing.

2. Temperature and Environmental Control

• When installing heat-shrinkable Tool holders, use dedicated heating equipment (such as a heat shrink machine). Strictly control the heating temperature and time to avoid degradation of the Tool holdersmaterial (such as reduced hardness and oxidation) due to overheating.
• Avoid prolonged exposure of the Tool holdersto humid or corrosive environments (such as areas exposed to coolant splashes). Clean and apply anti-rust oil (on non-contact surfaces) promptly after use to prevent rust.

3. Prohibited Illegal Operations

• Strictly perform any modifications such as welding or drilling on the Tool holdersto prevent damage to its structural strength and precision.
• Do not use the Tool holdersto lift workpieces or other heavy objects to prevent deformation or breakage.

Summary

CNC Tool holders are key components connecting machine tools and cutting tools. Their proper use directly impacts machining accuracy, tool life, and production safety. This guide provides clear requirements for the entire process, from installation and adaptation to maintenance: Before installation, thoroughly clean contact surfaces to ensure they are free of impurities; during installation, tighten to the standard torque, avoiding over tightening or under tightening; and use specialized tools during disassembly to prevent damage to the Tool holders or spindle due to rough handling. Compatibility must ensure the Tool holders is fully compatible with the machine tool spindle model (such as BT30 or HSK63A). High-dynamic-balance Tool holders (such as G1.0) are required for high-speed machining. Tool clamping range and reach should be optimized to ensure rigidity. During use, monitor cutting loads to avoid overload shock. Heat-shrink Tool holders should be precisely heated and temperature-controlled, and properly treated to prevent rust. Modification or use of Tool holders beyond their intended use is strictly prohibited. By maintaining a Tool holders life cycle profile and conducting regular inspections and maintenance, Tool holders service life can be extended by over 30%, significantly reducing production costs. With the advancement of intelligent Tool holders technology, standardized operation is not only a necessary measure to improve machining stability today, but also lays the foundation for future intelligent upgrades. Only by keeping in mind the operating principles of "cleaning and inspection, parameter matching, stopping when abnormal, and regular maintenance" can the effectiveness of the CNC tool holder be maximized.
