20 years of experience in hydraulic cylinder manufacturers.
MPM cylinders are mainly used in:
Hydraulic Cylinder

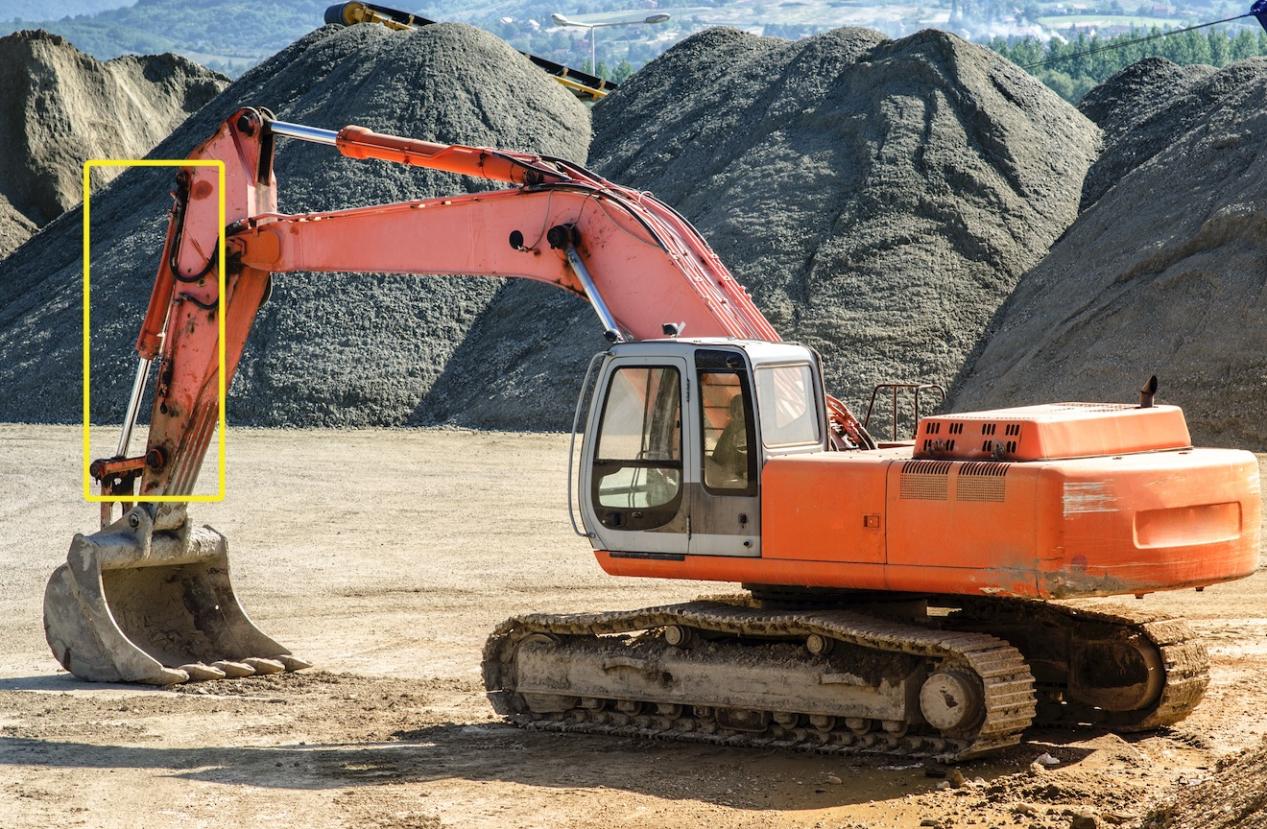

Bucket Cylinder MPM-HCB101 for Excavator and Loader
Description
● Working pressure: generally around 20-35 MPa, and the working pressure of the bucket cylinder of some medium and large excavators can reach 34.3 MPa.
● Working temperature: The designed temperature resistance range is usually -25℃～+120℃, and some products can work normally in an environment of -20℃～120℃.
● Reliable sealing system: Equipped with high-quality seals, such as dust rings, piston rod seals, etc., it can effectively prevent oil leakage and external pollutants from entering, and extend the service life of the cylinder.
● Multiple surface treatments: Provide a variety of surface anti-corrosion treatment solutions, such as Ni/Cr electroplating, ceramic spraying, laser cladding, QPQ, etc., to adapt to different working environments.
● Comprehensive after-sales service: Our customers can enjoy a 2-year warranty on core components, video technical support, online support, spare parts, and on-site maintenance and repair services.
● Customizable and reliable: As a non-standard product, we can meet customers' specific requirements, and our mechanical test reports and video factory inspections ensure the quality and reliability of the products.
Features
Control the action of the bucket.
Specification
| Bore diameter | 200mm~360mm |
| Rod diameter | 140mm~260mm |
| Stroke | ≤2500 mm |
| Thrust force | Maximum 3560.8KN (Bore diameter: 420mm/ pressure35MPa) |
| Material | Carbon steel, Alloy steel, Stainless steel |
| Coating | Sandblasting, primer paint, middle paint, finish paint |
| Customization is the first principle of MPM. | |
Feedback from Customer:
Construction machinery
(Hydraulic lifting cylinders and steering cylinders for cranes/ forklifts/ tractors/ loaders/ excavators)
Industrial equipment
(Hydraulic cylinders/ tie rod cylinders/ compact cylinders)
Ships and offshore machinery
(Heavy cylinders, stainless steel hydraulic cylinders)
Customization
If you can provide us with the following technical parameters, we can design and customize Bucket Cylinder according to your needs:
- Bore
- Rod diameter
- Stroke
- Working pressure
- Installation type
- Push or pull back capacity
