Hydraulic Cylinder

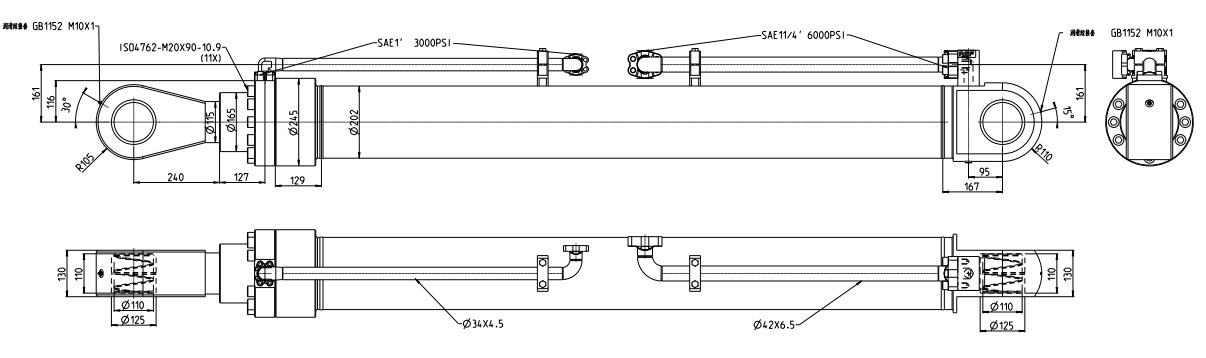

Boom Cylinder MPM-HCB212 for Excavator and Loader
Description
● Maximum thrust: 361KN for small excavators (cylinder diameter 125mm/pressure 29.4MPa), 4846.6KN for medium and large excavators (cylinder diameter 420mm/pressure 35MPa).
● Working pressure: small excavators are generally 13MPa, and medium and large excavators can reach 35MPa.
● Design temperature range: -25℃～+120℃
● High-strength structural design: using high-strength materials, combined with special heat treatment and welding technology, to ensure that the cylinder has a very high fatigue durability under high pressure and heavy load.
● Comprehensive after-sales service: Our customers can enjoy a 2-year warranty on core components, video technical support, online support, spare parts, and on-site maintenance and repair services.
● Customizable and reliable: As a non-standard product, we can meet customers' specific requirements, and our mechanical test reports and video factory inspections ensure the quality and reliability of the products.
Features

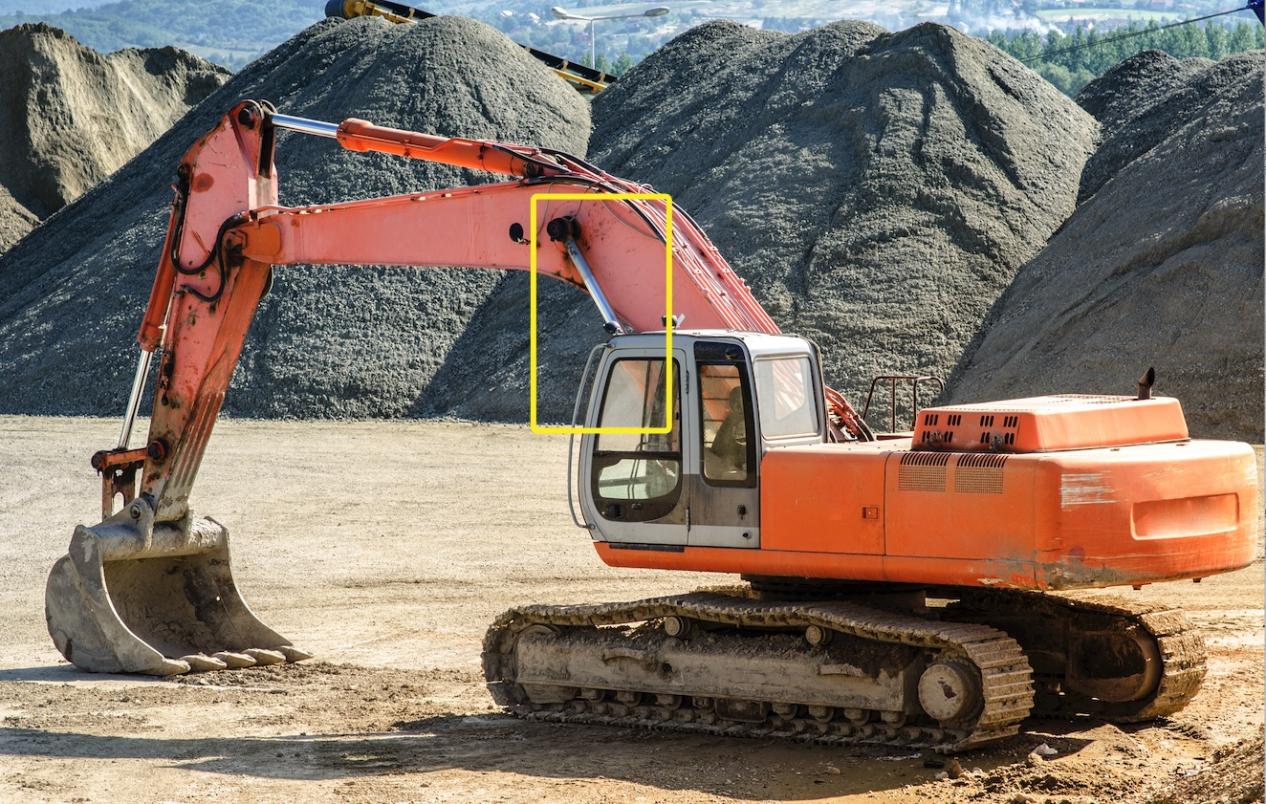

Control the lifting motion of the big arm.
Specification
| Bore diameter | 200mm~420mm |
| Rod diameter | 140mm~300mm |
| Stroke | ≤3500mm |
| Thrust force | Maximum 4846.6KN (Bore diameter: 420mm/ pressure35MPa) |
| Material | Carbon steel, Alloy steel, Stainless steel |
| Coating | Sandblasting, primer paint, middle paint, finish paint |
| Customization is the first principle of MPM. | |
Construction machinery
(Hydraulic lifting cylinders and steering cylinders for cranes/ forklifts/ tractors/ loaders/ excavators)
Industrial equipment
(Hydraulic cylinders/ tie rod cylinders/ compact cylinders)
Ships and offshore machinery
(Heavy cylinders, stainless steel hydraulic cylinders)
Customization
If you can provide us with the following technical parameters, we can design and customize Boom Cylinder according to your needs:
- Bore
- Rod diameter
- Stroke
- Working pressure
- Installation type
- Push or pull back capacity
