In today’s world of machining, staying competitive means placing a big emphasis on how well you optimize your Cnc Tool Holders. It’s pretty clear that they’re crucial for getting the best precision and efficiency. I mean, just recently, a report from MarketsandMarkets mentioned that the global Cnc Tooling market could hit$100 billion by 2025. That growth is mainly driven by the growing demand for really high-quality, precision-engineered parts.
At Qingdao Micro Precision Machinery Co., Ltd., we’ve been working since 2006, leading the charge with advanced manufacturing technologies—think high-performance hydraulic systems and super precise mechanical components. If manufacturers pay more attention to optimizing their CNC tool holders, they can seriously improve machining accuracy and extend tool life. That, in turn, helps cut down cycle times and costs. In this blog, I’ll share some practical tips on how to achieve these improvements and explain just how critical properly tuned CNC tool holders are for keeping operations running smoothly and efficiently.
Understanding the Importance of CNC Tool Holder Integrity in Machining Performance
You know, the integrity of CNC tool holders really makes a huge difference when it comes to getting those machining jobs spot-on. I read somewhere — I think it was in a report by Tooling Usmech — that almost 30% of machining errors can actually be traced back to problems with the tool holders. That just goes to show how important it is to have these components dialed in perfectly. If a tool holder isn’t rigid or stable enough, it can throw off the whole process. In fact, even a tiny misalignment can cause dimensional errors that are more than 0.002 inches — not exactly negligible! So, putting in the effort to maintain and design better tool holders can really boost both efficiency and accuracy in manufacturing.
And it’s not just about the tool holders themselves. Getting the right gripping force and keeping vibrations to a minimum are super important too. A study from the National Institute of Standards and Technology (NIST) found that when tool holders are properly calibrated, tool wear can drop by up to 25%. That’s a pretty big deal since it means tools last longer, and the finished products come out with better surface finishes and tighter tolerances. Bottom line — investing in good-quality CNC tool holders and keeping a close eye on their condition isn’t just smart, it’s essential for manufacturers who really want top-notch machining results and smoother operations.
Key Factors Influencing CNC Tool Holder Precision and Efficiency
When it comes to Cnc Machining, the accuracy and efficiency of your tool holders really make a big difference in how well everything turns out. Things like the design of the tool holder, what materials you pick, and how the tool is clamped all play a part in this. A properly designed tool holder can help cut down on runout and vibrations, which directly impacts the quality of the finished part. Choosing high-quality materials like hardened steel or durable alloys can boost the overall stability and longevity—so you can run at higher speeds without sacrificing precision.
Another thing that matters a ton is how you clamp the tool. Whether you go with manual or automatic clamping systems, the way your tool is secured can really make or break the machining process. A stiff, secure clamp keeps the tool steady, reducing the risk of it moving or deflecting during work. Oh, and don’t forget—regular maintenance of your tool holders and CNC machine is super important. Dirty or worn-out parts can mess with precision, so a quick cleanup or check-up now and then really helps keep things running smoothly. Focusing on these points can help machinists get the most out of their CNC tool holders, making everything more accurate and efficient overall.
Optimization of CNC Tool Holders: Precision vs Efficiency
Best Practices for Selecting the Right CNC Tool Holders for Your Operations
Picking the right CNC tool holders really matters if you want to get the most out of your machining work. When you're choosing one, think about stuff like whether it fits well with your setup, what material it’s made from, and how sturdy it is. A good quality tool holder can make a big difference—helping to cut down vibrations and keep everything stable, which in turn boosts the quality of your finished piece. Oh, and don’t forget to look for something that makes changing tools quick and secure—that way, you save time and avoid those annoying setup mistakes.
Another thing that’s super important is coolant application right at the cutting edge while you’re working. Managing heat properly is key—if you don’t, it can mess with the tool’s performance and mess up your workpiece. A properly designed tool holder should help deliver coolant efficiently, helping to clear chips better and give you a nice, smooth surface finish. When you combine choosing the right holder with effective coolant use, you’ll find it much easier to handle those tricky turning jobs, ultimately making everything more precise and efficient.
How to Optimize Your CNC Tool Holders for Maximum Precision and Efficiency in Machining
| Tool Holder Type | Material | Precision Level | Max RPM | Applications |
| Collet Chuck | Steel | High | 12000 | Milling, Drilling |
| End Mill Holder | Aluminum | Medium | 10000 | Slotting, Profile Cutting |
| Shrink Fit Holder | Tool Steel | Very High | 15000 | High-Speed Machining |
| Tapered Tool Holder | Carbon Steel | Medium | 8000 | Turning, Milling |
| Hydraulic Tool Holder | Alloy Steel | High | 11000 | Precision Machining |
Maintenance Tips to Enhance the Lifespan of CNC Tool Holders
Taking good care of your CNC tool holders really makes a difference when it comes to getting the most precise and efficient machining. Regular upkeep not only helps them last longer but also keeps your production running smoothly. These days, with all the new tech like predictive maintenance, it's a game-changer—allowing manufacturers to spot potential issues early on, before they cause any real downtime. By adding smart vision systems and sensors, you can keep an eye on your tool holders’ condition in real-time, making it easier to know when maintenance is needed.
If you’re looking to extend the life of your tool holders, here are a few tips. First off, do routine inspections for any signs of wear or damage—catching problems early is key. Make sure to stick to a regular cleaning schedule to clear out debris and contaminants that could mess with performance. And don’t forget about lubrication—keeping everything well-lubricated helps reduce friction and prevents premature wear.
Plus, industry reports show that when you keep your tool holders in top shape, you can cut down machining errors by anywhere from 20 to 40%. That’s a pretty solid saving. Investing in smarter maintenance methods and quality tool holders really pays off—it boosts your machining efficiency and also keeps those unexpected downtimes at bay.
Advanced Techniques for Aligning CNC Tool Holders for Optimal Functionality
When we're talking about getting those machining results just right, nothing's more important than properly aligning your CNC tool holders. If they're off even a little bit, it can cause inconsistent cuts, wear out your tools faster, and seriously mess with the final quality of your parts. So, to make sure everything's running smoothly, it’s a good idea to start with a careful check of the tool holder and the spindle. Giving both a quick clean—removing any dust or debris—can make a surprisingly big difference when you're trying for that perfect fit.
Nowadays, many folks use fancy techniques like dial indicators or alignment sensors that give you real-time feedback on the positioning. With these, you can make tiny tweaks to nail that perfect alignment with the spindle’s axis. Oh, and don’t forget—type of tool holder matters, too. Some designs are more stable and vibrate less, making life a lot easier. And of course, regular calibration and maintenance of your CNC machine keep everything on point, which not only boosts accuracy but also helps your tools last longer. It’s all about keeping things tight and well-tuned—the results are totally worth it!
Evaluating the Impact of Tool Holder Design on Machining Outcomes
When it comes to CNC tool holders, their design really makes a big difference in how well machining turns out. It’s all about squeezing out more precision and efficiency, right? Lately, there have been some pretty exciting updates in tool holder tech—think adaptive designs and better materials—that can seriously boost cutting performance and make tools last longer.
For example, new chip breaker designs have shown to help keep the tools in shape longer and preserve the quality of drilled holes, especially when working with tricky composite materials. These kinds of innovations show that better tool holder design helps reduce wear and tear, which ultimately leads to better overall results.
On another note, the whole game is changing with AI and machine learning stepping into the scene. These smart tech tools let us monitor the machining process in real-time—something that used to be really tough to do manually. By analyzing things like vibration signals and how they affect tool performance, manufacturers can get a much clearer picture of what's happening during machining. This allows for smarter control methods, resulting in more precise and efficient operations.
So, basically, investing in innovative tool holder designs and smart monitoring systems isn’t just a trend—it’s a smart move if you want to stay ahead of the competition and get top-notch results.

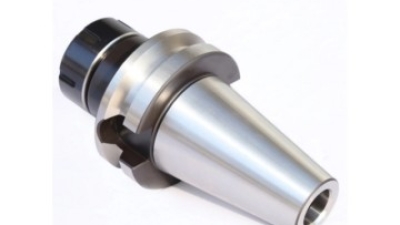

Maximizing Precision and Efficiency with the MPM-CTH400 Milling Tool Holder
The MPM-CTH400 Milling Tool Holder is revolutionizing the way we approach precision and efficiency in modern machining. Designed to enhance performance, this tool holder excels in maintaining the alignment and stability necessary for high-quality milling operations. Its robust construction combines a durable tool handle body, a reliable spring chuck, and a secure nut, ensuring that the cutting tool remains firmly in place during operation. This feature is critical as it minimizes vibrations and deviations that can compromise the accuracy of the machining process.
Moreover, the MPM-CTH400 enables faster tool changes without sacrificing precision, allowing machinists to optimize their workflow and productivity. Its compatibility with various cutting tools makes it an invaluable asset in diverse machining applications. By streamlining the connection between the mechanical spindle and the tooling accessories, this milling tool holder not only enhances efficiency but also significantly reduces downtime, thus maximizing output. Whether utilized in a high-volume production environment or in intricate custom machining jobs, the MPM-CTH400 encapsulates reliability and innovation, setting a new standard for milling tool holders.
FAQS
: Nearly 30% of machining errors can be attributed to tool holder issues.
The rigidity and stability of a tool holder directly impact machining accuracy, as even a slight misalignment can result in dimensional inaccuracies exceeding 0.002 inches.
Maintaining optimal gripping force and minimizing tool vibration can lead to maximum machining performance, prolonging tool life and enhancing surface finishes and tolerances.
Properly calibrated tool holders can reduce tool wear by up to 25%.
Recent developments include adaptive designs and optimized materials, which can significantly improve cutting performance, tool life, and overall integrity of machined components.
AI and machine learning enable real-time monitoring of tool performance, providing insights into cutting conditions and machine dynamics, which enhances precision and efficiency.
Advancements in chip breaker design have shown to improve tool life and maintain hole integrity during the drilling of composite materials.
Investing in high-quality CNC tool holders and regularly monitoring their integrity is vital for achieving superior machining outcomes and operational efficiency.
Maintaining tool holder integrity is essential for reducing machining errors and enhancing the overall performance and efficiency of machining operations.
Understanding vibration signals allows for better control mechanisms in machining, leading to enhanced precision and efficiency in the machining process.
Conclusion
When it comes to machining, making sure your CNC tool holders are optimized is pretty much vital if you want top-notch precision and efficiency. Honestly, knowing the condition of these tool holders really matters because it directly affects how well your machining runs. Things like the material you choose, how precisely the design is made, and ongoing maintenance all play a big role in keeping everything running smoothly. Picking the right CNC tool holders for your specific jobs can seriously boost productivity and help you avoid unnecessary downtime.
Here at Qingdao Micro Precision Machinery Co., Ltd., we totally get how important high-quality tool holders are. That’s why we offer advanced solutions designed to meet a wide range of machining needs. By sticking to good maintenance habits, making sure everything stays aligned, and paying attention to how design impacts performance, companies can really improve their efficiency. Investing in good CNC tool holders isn’t just about getting the job done; it’s about achieving better results and staying competitive out there.
