The Grapple Bucket Cylinder might not be something you think about often, but honestly, it’s a pretty big deal when it comes to heavy machinery. Whether you're in construction or forestry—places where handling loads is just part of the daily grind—that little component makes a huge difference. I recently read that the global market for hydraulic machinery is expected to hit around $60 billionby 2025. That just shows how much companies are relying on hydraulic tech to get things done more effectively. Devices like Mini Excavators and forklifts wouldn’t work as smoothly without the precise control thesecylinders provide, especially for gripping and lifting heavy stuff.
At Qingdao Micro Precision Machinery Co., Ltd., we’ve been around since 2006 and have grown into a pretty big name worldwide, making high-quality hydraulic systems and Mechanical Parts. By pushing forward with innovations like theGrapple Bucket Cylinder, we’re all about helping heavy machinery work better and smarter in a world that’s changing fast.
Understanding the Mechanism of the Grapple Bucket Cylinder in Heavy Machines
The grapple bucket cylinder might not be something everyone thinks about, but it’s actually a pretty key part of heavy machinery, especially when you're dealing with grabbing and moving stuff around. Basically, it’s what makes those grapple arms open and close, thanks to a hydraulic system. Whether you’re lifting logs or hauling away debris, this component needs to be spot-on. The trick is, it has to apply just the right amount of force—you don’t want things slipping or getting stuck. That’s why precision and reliability are so important here, ensuring everything stays safe and the job gets done efficiently.
If you’re curious about how it actually works, think of hydraulic action as the heart of it. When hydraulic fluid gets pumped in, it builds pressure and pushes the piston inside the cylinder. That movement then makes the grapple arms open or close. The design of these cylinders is usually pretty sturdy, built to handle heavy-duty use without falling apart. Of course, keeping it in good shape is a must—making sure seals are intact and checking for leaks. A leak or some worn-out parts can seriously mess with performance, and nobody wants costly repairs or a machine that’s not working right.
So yeah, while it might seem like just a small part, a lot depends on that grapple bucket cylinder working smoothly. It’s all about making your heavy machinery reliable and safe, no matter what kind of tough jobs you throw at it.
Key Components of Grapple Bucket Cylinders and Their Roles
You know, the grapple bucket cylinder is pretty much a must-have part when it comes to heavy machinery, especially if you're into material handling or land clearing. Basically, its main job is to open and close the grapple bucket — so operators can grab, lift, and move things around with ease. It’s a game-changer for getting work done faster and more efficiently, whether you're on a construction site, doing logging, or recycling stuff.
So, what’s inside this thing? Well, you've got the cylinder body, which holds the piston — the part that moves around when Hydraulic Pressure kicks in. The piston then turns hydraulic energy into the mechanical action needed to operate the bucket. There are also seals that keep the hydraulic fluid from leaking out, which is super important because it keeps everything running smoothly and maintains pressure. And of course, the hydraulic lines are kind of like the pipes that transfer the fluid back and forth, giving you precise control over the bucket’s movements. When all these parts work together, the grapple bucket just operates like a champ — making it a crucial piece of any heavy machine setup.
Functionality of the Grapple Bucket Cylinder in Heavy Machinery
| Component | Function | Material | Operating Pressure (psi) | Weight (lbs) |
| Grapple Arm | Clamping and lifting objects | High tensile steel | 2500 | 150 |
| Hydraulic Cylinder | Provides power for grappling action | Aluminum alloy | 3000 | 80 |
| Rotational Joint | Enables the rotation of the grapple | Forged steel | 1500 | 40 |
| Pivot Pin | Supports leverage for opening and closing | Carbon steel | 2000 | 10 |
| Seal Kit | Prevents hydraulic fluid leaks | Rubber and plastic composites | N/A | 2 |
Benefits of Using Grapple Bucket Cylinders in Construction and Excavation
Grapple bucket cylinders are pretty key when it comes to making heavy machinery more efficient on construction and excavation sites. They give you a strong grip and can handle all kinds of materials, which means operators can lift, move, or sort debris and loads more precisely—and honestly, it makes a huge difference, especially in tight spots where maneuvering can be a real challenge. These cylinders make complex moves possible that might otherwise be a nightmare.
At Qingdao Micro Precision Machinery Co., Ltd., we totally get how important reliable hydraulic systems are for getting the most out of grapple bucket cylinders. We’ve got a knack for building high-quality hydraulic parts that not only pack a punch in terms of power but are also built to last and stay efficient. Plus, with our small but mighty equipment like mini excavators, it’s super easy to integrate these cylinders into your projects. All in all, this means jobs get done faster with less downtime, helping companies wrap up projects more smoothly and effectively.
Functionality of Grapple Bucket Cylinders in Heavy Machinery
Maintenance Tips for Grapple Bucket Cylinders to Enhance Durability
Grapple bucket cylinders are pretty vital when it comes to heavy machinery—they basically help move and handle materials. If you want these cylinders to keep working smoothly and last a long time, regular maintenance is a must. One of the biggest things to keep an eye on is the hydraulic fluid—make sure it’s at the right level and still good quality. If the fluid gets contaminated, it can cause corrosion and wear down the parts, which isn’t great for performance. So, topping it off and keeping it clean can really save you from bigger headaches down the line.
Also, don’t forget to look for any signs of wear on the seals and hoses connected to the cylinder. Cracks or leaks? Those are red flags — they can cause hydraulic failure, messing up your operation and maybe even creating safety risks. It’s worth swapping out worn parts early before they completely give out. And, a little protective coating on the cylinder can go a long way, helping to prevent rust and keep the system in good shape. Taking these small steps can really boost the lifespan and reliability of your grapple bucket system.
Common Issues with Grapple Bucket Cylinders and How to Troubleshoot
Grapple bucket cylinders are pretty crucial when it comes to heavy machinery—especially for tasks that need careful handling and precise movement of materials. That said, they're not immune to issues, and when problems pop up, they can really slow things down or cause downtime. Common hiccups with these cylinders usually include hydraulic leaks, misalignment, or not enough pressure, often because of wear and tear or just not keeping up with maintenance.
If you're troubleshooting, a good first step is to give everything a careful look—check for leaks, and inspect seals and hoses to see if anything’s worn out or damaged. Keeping up with regular maintenance can go a long way in preventing most hydraulic issues. Also, make sure the cylinders stay properly aligned and are working as they should. Monitoring the pressure levels is super helpful too, since catching issues early can save a lot of headaches down the road.
Addressing these common problems head-on helps keep things running smoothly and avoids costly repairs—kinda like how businesses need to stay agile and adapt to changing industry trends. So, staying on top of maintenance and being proactive really pays off in the long run.
Comparative Analysis: Grapple Bucket Cylinders vs. Traditional Buckets
So, you know how traditional buckets on heavy machinery kind of do their thing by scooping and lifting stuff mainly relying on gravity and the weight? Well, they’re pretty good at it, but they do have their limits—especially when it comes to awkward-shaped or bulky things. Sometimes, stuff can slip out or the loading just isn’t super efficient. That’s where grapple bucket cylinders come into play. They’ve got hydraulic arms that open and close, giving you a tight grip on all sorts of objects. It’s a game-changer because it makes your equipment way more versatile and allows for much more precise handling. That’s why you often see them in waste management, recycling, or forestry work—they really shine there.
When you compare grapple buckets to regular ones, it’s clear that grapple setups are a lot more adaptable. Sure, traditional buckets do a solid job at digging and moving stuff around in straightforward jobs, but grapple buckets are better suited for handling tricky materials like logs, debris, or rocks. The hydraulic system means you can adjust how hard or soft you grip depending on the size and shape of whatever you’re grabbing, which helps protect both the load and the machine itself. Plus, they make sorting and stacking materials way more efficient, saving time and boosting productivity at the job site. All in all, adding grapple bucket cylinders to heavy machinery really steps things up when it comes to handling all kinds of materials—you could say it’s a pretty big leap forward.

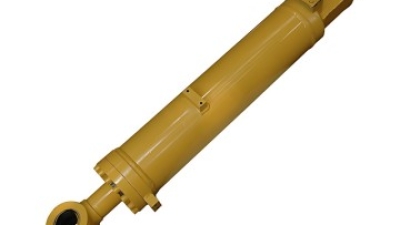

Innovative Uses and Benefits of the Chassis Telescopic Cylinder in Modern Engineering Applications
The chassis telescopic cylinder represents a significant innovation in modern engineering applications, particularly within the realm of small excavators. This specialized equipment allows for the dynamic adjustment of the chassis width, enabling operations in narrow spaces where conventional machinery would struggle. According to a report by the Global Construction Equipment Market, the demand for compact equipment is projected to increase by 4.5% annually, driven by urbanization and the expansion of infrastructure development. Such enhancements in machinery design, such as the telescopic cylinder, are crucial for meeting these demands.
The precise telescoping ability of these cylinders greatly improves the passability and stability of excavators in complex terrains. In environments where uneven ground and obstacles pose challenges, a stable base is essential for safety and efficiency. Data from the International Journal of Heavy Equipment and Vehicles indicates that properly equipped small excavators can increase operational safety by up to 30%, thanks to advancements such as these cylinders. Thus, integrating chassis telescopic cylinders not only enhances the functionality of excavators but also ensures that they can operate safely across various conditions, further solidifying their role in modern engineering projects.
Moreover, the versatility provided by the small excavator chassis telescopic cylinder aligns perfectly with the industry’s move towards more adaptable and efficient machinery. As reported by the Society of Automotive Engineers, incorporating such innovative components can lead to a 20% reduction in operation time for narrow-space tasks. This remarkable improvement underscores the importance of these technologies in driving the future of engineering applications, where adaptability and efficiency are paramount.
FAQS
: The grapple bucket cylinder is responsible for extending and retracting the grapple arms, allowing operators to securely grip and move various loads, such as logs and debris.
The hydraulic mechanism operates by pumping hydraulic fluid into the cylinder, generating pressure that moves the piston inside, which in turn opens and closes the grapple arms.
Proper maintenance ensures optimal performance, prevents hydraulic leaks that could impair functionality, and helps avoid costly repairs due to unexpected failures.
Key maintenance tips include regularly inspecting hydraulic fluid levels and quality, checking seals and hoses for wear and tear, replacing worn parts, and applying protective coatings to prevent rust.
Common issues include hydraulic leaks, cylinder misalignment, and inadequate pressure, often due to wear and tear or improper maintenance.
Operators can troubleshoot by inspecting for leaks, checking the condition of seals and hoses, ensuring correct alignment, and monitoring pressure levels to detect issues early.
Conclusion
Hey, so I was reading this article about the Grapple Bucket Cylinder — pretty interesting stuff, especially when you’re dealing with heavy machinery like in construction or digging projects. It explains how these cylinders work, breaking down the main parts and what they do to help things run smoothly and efficiently. Honestly, they make a real difference compared to regular buckets, too — being able to handle all sorts of materials with more precision and ease is a game-changer.
They also share some handy tips on keeping these cylinders in good shape — stuff like maintenance tricks and troubleshooting common problems so you can get the most out of them. If you ask me, knowing why these cylinders matter is pretty important, especially if you’re working with heavy gear. And, by the way, Qingdao Micro Precision Machinery Co., Ltd. is one of the top names when it comes to high-quality hydraulic systems, so they really know their stuff. Overall, getting a handle on Grapple Bucket Cylinders can seriously boost your operations and make your life a lot easier.
